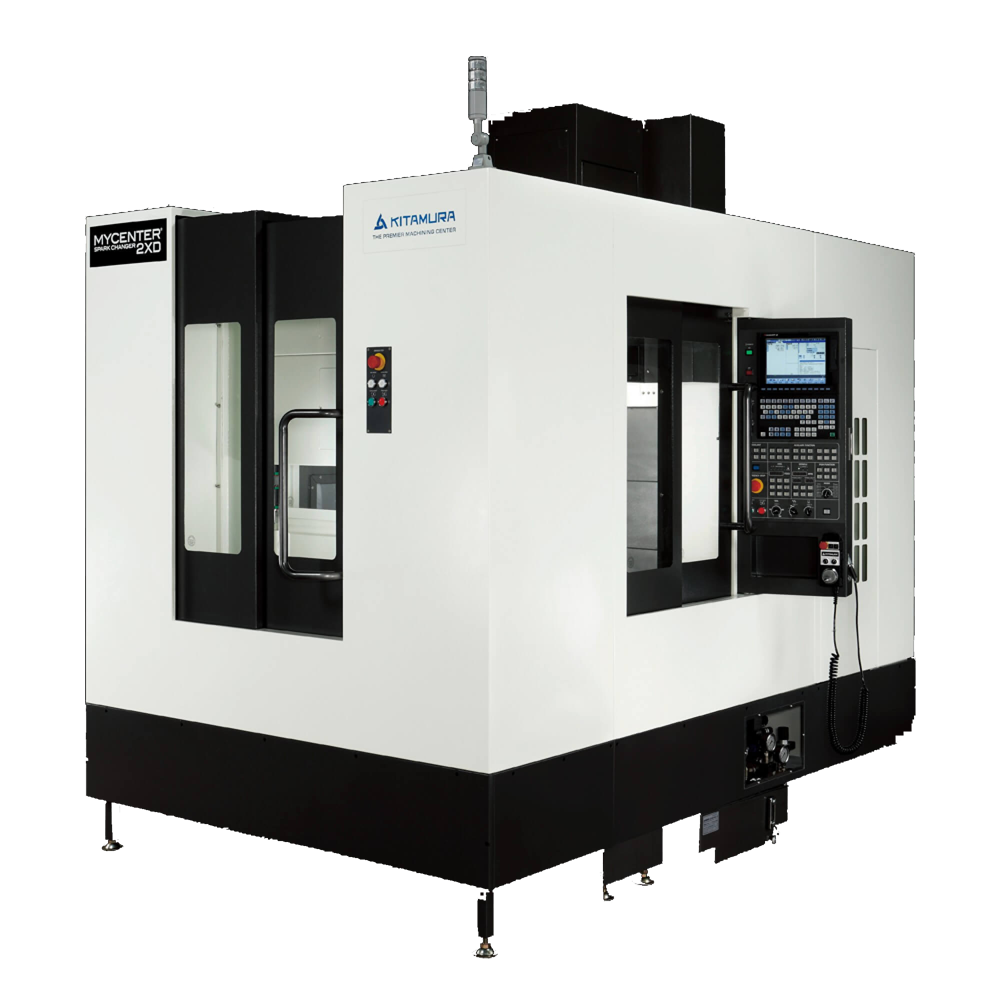

Mycenter - 2XD ``Sparkchanger``
Vertical Machining Center
| Table Size: | 15.7” x 22.0” (400 x 560mm) |
| Travel (X, Y, Z): | 23.6” x 20.1” x 20.1” (600 x 510 x 510mm) |
| Spindle Taper: | NST No. 40 |
| Spindle Speed: | 12,000rpm, NRG Belt Drive |
| Tool Storage Capacity: | 40 Pcs. |
| Tool Change Time (T-T/C-C): | 2.8 Sec. /5.2 Sec. |
| Rapid Feed (X,Y,Z): | 1,889ipm (48m/min) X/Y x 1,654ipm (42m/min) Z |
| Power Requirement: | 30KVA |
Features
- Ideal for machining small to medium sized work pieces
- Standard 2-station, factory installed 180 degree rotating APC. Uniquely compact design
- Heavily ribbed stiff cast Meehanite C-Frame construction
- #40, 35HP, 12,000rpm NRG belt driven spindle offers power that exceeds industry standards
- Convenient and flexible standard scraper type chip conveyor
- Operator friendly Kitamura Arumatik-Jr. CNC Controller offers up to 16x faster processing speeds!
