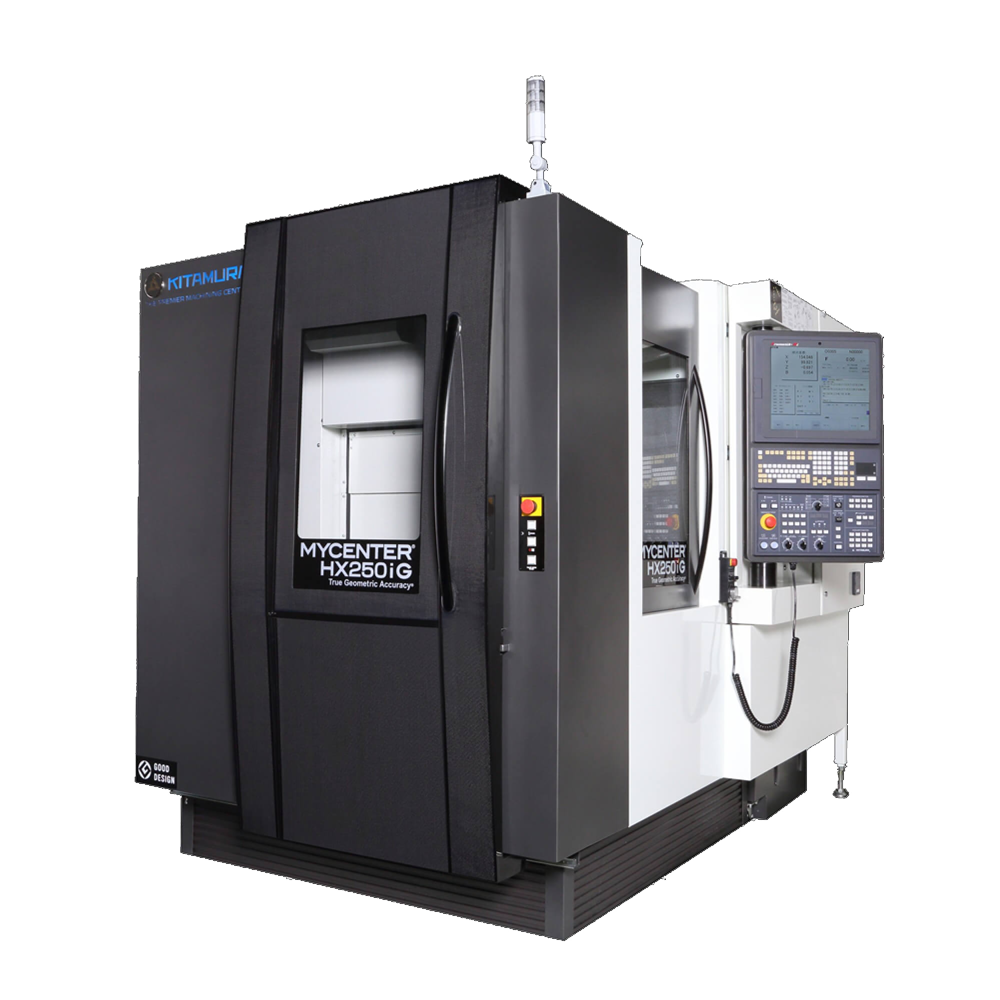

Mycenter-HX250iG
Ultra Compact Horizontal Machining Center
| Table Size: | 10” x 10” (254 x 254mm) |
| Travel (X, Y, Z): | 12” x 12” x 13” (305 x 305 x 330mm) |
| Spindle Taper: | NST No. 30 |
| Spindle Speed: | 150~15,000rpm **30,000 Option |
| Tool Storage Capacity: | 40 Pcs.- Expandable in the Field to 102 Tools! |
| Tool Change Time (T-T/C-C): | 1.2 Sec. /2.8 Sec. |
| Rapid Feed (X,Y,Z): | 2,362ipm (60m/min) |
| Rapid Feed (B): | 108,000deg./min. (300rpm) |
| Power Requirement: | 30KVA |
Features
- Drastically reduces set-up times for small, detailed, highly accurate complex parts
- Amazingly small footprint saves on valuable floor space
- Positioning Accuracy: ±0.000078” Full Stroke, Repeatability: ±0.000039”
- Ultra high speed rapid feed rates of 2,362ipm
- 2-Station APC with High Speed 4th axis rotary table, DD Motor Driven 108,000deg/min rapids
- High power, high-speed processing Arumatik-Mi CNC with 67 million pulse coder technology
- Powerful 15,000rpm, dual contact spindle – Optional 30,000rpm HSK-E40 spindle Available
- Optional 10-Station Automatic Pallet Changer and 102 Tool Upgrade available in the field
